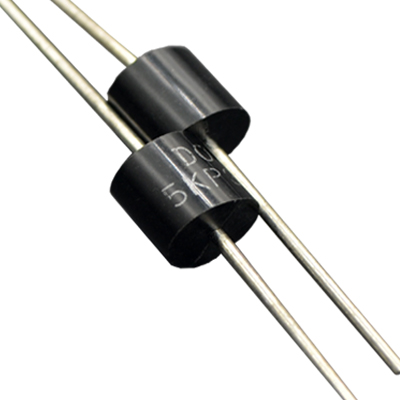

產品特性
? 玻璃鈍化芯片
? 在10/1000μ波形重復率（占空比）：0.01%下，峰值脈沖功率可達5000w
? 低漏電流
? 單、雙向單元
? 優良的鉗位能力
? 快速的響應時間
? 通過無鉛認證，符合ROHS
機械參數
? 方法：模制塑料
? 環氧樹脂：UL 94V-0阻燃劑
? 引線：可焊性按MIL-STD-202，方法208可焊
? 極性：除雙極性外有色帶的一端為陰極
? 安裝位置：任何
| 型號 | 圖片 | 封裝 | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | 下載 |
|---|---|---|---|---|---|---|---|---|---|---|
|
R-6/P600 |
6.40 |
7.00 |
50 |
5000 |
5 |
543.48 |
9.2 |
|
|
|
R-6/P600 |
6.67 |
7.37 |
50 |
5000 |
6 |
485.44 |
10.3 |
|
|
|
R-6/P600 |
7.22 |
7.98 |
50 |
2000 |
6.5 |
446.43 |
11.2 |
|
|
|
R-6/P600 |
7.78 |
8.60 |
50 |
1000 |
7 |
416.67 |
12.0 |
|
|
|
R-6/P600 |
8.33 |
9.21 |
5 |
250 |
7.5 |
387.60 |
12.9 |
|
|
|
R-6/P600 |
8.89 |
9.83 |
5 |
150 |
8 |
367.65 |
13.6 |
|
|
|
R-6/P600 |
9.44 |
10.40 |
5 |
50 |
8.5 |
347.22 |
14.4 |
|
|
|
R-6/P600 |
10.00 |
11.10 |
5 |
20 |
9 |
324.68 |
15.4 |
|
|
|
R-6/P600 |
11.10 |
12.30 |
5 |
15 |
10 |
294.12 |
17.0 |
|
|
|
R-6/P600 |
12.20 |
13.50 |
5 |
2 |
11 |
274.73 |
18.2 |
|
|
|
R-6/P600 |
13.30 |
14.70 |
5 |
2 |
12 |
251.26 |
19.9 |
|
|
|
R-6/P600 |
14.40 |
15.90 |
5 |
2 |
13 |
232.56 |
21.5 |
|
|
|
R-6/P600 |
15.60 |
17.20 |
5 |
2 |
14 |
215.52 |
23.2 |
|
|
|
R-6/P600 |
16.70 |
18.50 |
5 |
2 |
15 |
204.92 |
24.4 |
|
|
|
R-6/P600 |
17.80 |
19.70 |
5 |
2 |
16 |
192.31 |
26.0 |
|
|
|
R-6/P600 |
18.90 |
20.90 |
5 |
2 |
17 |
181.16 |
27.6 |
|
|
|
R-6/P600 |
20.00 |
22.10 |
5 |
2 |
18 |
171.23 |
29.2 |
|
|
|
R-6/P600 |
21.10 |
23.30 |
5 |
2 |
19 |
162.44 |
30.8 |
|
|
|
R-6/P600 |
22.20 |
24.50 |
5 |
2 |
20 |
154.32 |
32.4 |
|
|
|
R-6/P600 |
24.40 |
26.90 |
5 |
2 |
22 |
140.85 |
35.5 |
|
|
|
R-6/P600 |
26.70 |
29.50 |
5 |
2 |
24 |
128.63 |
28.9 |
|
|
|
R-6/P600 |
28.90 |
31.90 |
5 |
2 |
26 |
118.76 |
42.1 |
|
|
|
R-6/P600 |
31.10 |
34.40 |
5 |
2 |
28 |
110.13 |
45.4 |
|
|
|
R-6/P600 |
33.30 |
36.80 |
5 |
2 |
30 |
103.31 |
48.4 |
|
|
|
R-6/P600 |
36.70 |
40.60 |
5 |
2 |
33 |
93.81 |
53.3 |
|
|
|
R-6/P600 |
40.00 |
44.20 |
5 |
2 |
36 |
86.06 |
58.1 |
|
|
|
R-6/P600 |
44.40 |
49.10 |
5 |
2 |
40 |
77.52 |
64.5 |
|
|
|
R-6/P600 |
47.80 |
52.80 |
5 |
2 |
43 |
72.05 |
69.4 |
|
|
|
R-6/P600 |
50.00 |
55.30 |
5 |
2 |
45 |
68.78 |
72.7 |
|
|
|
R-6/P600 |
53.30 |
58.90 |
5 |
2 |
48 |
64.60 |
77.4 |
|
|
|
R-6/P600 |
56.70 |
62.70 |
5 |
2 |
51 |
60.68 |
82.4 |
|
|
|
R-6/P600 |
60.00 |
66.30 |
5 |
2 |
54 |
57.41 |
87.1 |
|
|
|
R-6/P600 |
64.40 |
71.20 |
5 |
2 |
58 |
53.42 |
93.6 |
|
|
|
R-6/P600 |
66.70 |
73.70 |
5 |
2 |
60 |
51.65 |
96.8 |
|
|
|
R-6/P600 |
71.10 |
78.60 |
5 |
2 |
64 |
48.54 |
103.0 |
|
|
|
R-6/P600 |
77.80 |
86.00 |
5 |
2 |
70 |
44.25 |
113.0 |
|
|
|
R-6/P600 |
83.30 |
92.10 |
5 |
2 |
75 |
41.32 |
121.0 |
|
|
|
R-6/P600 |
86.70 |
95.80 |
5 |
2 |
78 |
39.68 |
126.0 |
|
|
|
R-6/P600 |
88.80 |
97.60 |
5 |
2 |
80 |
38.58 |
129.6 |
|
|
|
R-6/P600 |
94.40 |
104.00 |
5 |
2 |
85 |
36.50 |
137.0 |
|
|
|
R-6/P600 |
100.00 |
111.00 |
5 |
2 |
90 |
34.25 |
146.0 |
|
|
|
R-6/P600 |
111.00 |
123.00 |
5 |
2 |
100 |
30.86 |
162.0 |
|
|
|
R-6/P600 |
122.00 |
135.00 |
5 |
2 |
110 |
28.25 |
177.0 |
|
|
|
R-6/P600 |
133.00 |
147.00 |
5 |
2 |
120 |
25.91 |
193.0 |
|
|
|
R-6/P600 |
144.00 |
159.00 |
5 |
2 |
130 |
23.92 |
209.0 |
|
|
|
R-6/P600 |
155.00 |
171.00 |
5 |
2 |
140 |
22.05 |
226.8 |
|
|
|
R-6/P600 |
167.00 |
185.00 |
5 |
2 |
150 |
20.58 |
243.0 |
|
|
|
R-6/P600 |
178.00 |
197.00 |
5 |
2 |
160 |
19.31 |
259.0 |
|
|
|
R-6/P600 |
189.00 |
209.00 |
5 |
2 |
170 |
18.18 |
275.0 |
|
|
|
R-6/P600 |
200.00 |
220.00 |
5 |
2 |
180 |
17.15 |
291.6 |
|
|
|
R-6/P600 |
211.00 |
232.00 |
5 |
2 |
190 |
16.24 |
307.8 |
|
|
|
R-6/P600 |
222.00 |
246.00 |
5 |
2 |
200 |
15.43 |
324.0 |
|
|
|
R-6/P600 |
233.00 |
258.00 |
5 |
2 |
210 |
14.31 |
349.5 |
|
|
|
R-6/P600 |
244.00 |
270.00 |
5 |
2 |
220 |
14.04 |
356.0 |
|
|
|
R-6/P600 |
277.00 |
306.00 |
5 |
2 |
250 |
12.35 |
405.0 |
|
|
|
R-6/P600 |
335.00 |
371.00 |
5 |
2 |
300 |
10.29 |
486.0 |
|
|
|
R-6/P600 |
391.00 |
432.00 |
5 |
2 |
350 |
8.82 |
567.0 |
|
|
|
R-6/P600 |
447.00 |
494.00 |
5 |
2 |
400 |
7.72 |
648 |
|
|
|
R-6/P600 |
492.00 |
543.00 |
5 |
2 |
440 |
7.01 |
713.0 |
|
