產品特性
? 玻璃鈍化芯片
? TJ = 175℃兼容性，適用于高可靠性和汽車保護要求
? 在10/1000μ波形重復率（占空比）：0.01%下，峰值脈沖功率可達5000w
? 高可靠性應用，符合汽車級AEC -Q101認證標準
? 可通過ISO 7637-2拋負載測試要求
? 低漏電流
? 單、雙向單元
? 優良的鉗位能力
? 快速的響應時間
? 通過無鉛認證，符合ROHS
機械參數
? 方法：模制塑料
? 環氧樹脂：UL 94V-0阻燃劑
? 引線：可焊性按MIL-STD-750，方法2026可焊
? 極性：除雙極性外有色帶的一端為陰極
? 安裝位置：任何
| 型號 | 圖片 | 封裝 | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | 下載 |
|---|---|---|---|---|---|---|---|---|---|---|
|

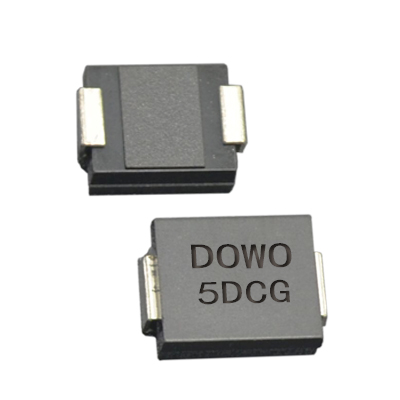

SMC/DO-214AB |
11.10 |
12.30 |
1 |
5 |
10.0 |
294.12 |
17.0 |
|
|
|

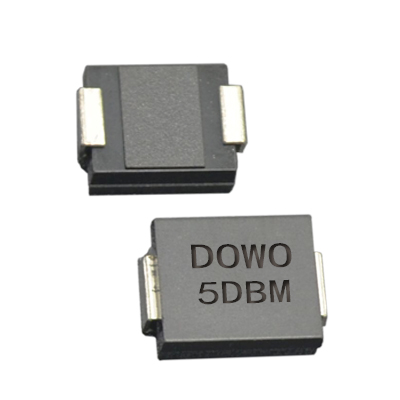

SMC/DO-214AB |
12.20 |
13.50 |
1 |
2 |
11.0 |
275.00 |
18.2 |
|
|
|
SMC/DO-214AB |
13.30 |
14.70 |
1 |
2 |
12.0 |
252.00 |
19.9 |
|
|
|
SMC/DO-214AB |
14.40 |
15.90 |
1 |
2 |
13.0 |
233.00 |
21.5 |
|
|
|
SMC/DO-214AB |
15.60 |
17.20 |
1 |
2 |
14.0 |
216.00 |
23.2 |
|
|
|
SMC/DO-214AB |
16.70 |
18.50 |
1 |
2 |
15.0 |
205.00 |
24.4 |
|
|
|
SMC/DO-214AB |
17.80 |
19.70 |
1 |
2 |
16.0 |
193.00 |
26.0 |
|
|
|
SMC/DO-214AB |
18.90 |
20.90 |
1 |
2 |
17.0 |
181.00 |
27.6 |
|
|
|
SMC/DO-214AB |
20.00 |
22.10 |
1 |
2 |
18.0 |
172.00 |
29.2 |
|
|
|
SMC/DO-214AB |
21.10 |
23.30 |
1 |
2 |
19.0 |
162.44 |
30.8 |
|
|
|
SMC/DO-214AB |
22.20 |
24.50 |
1 |
2 |
20.0 |
155.00 |
32.4 |
|
|
|
SMC/DO-214AB |
24.40 |
26.90 |
1 |
2 |
22.0 |
141.00 |
35.5 |
|
|
|
SMC/DO-214AB |
26.70 |
29.50 |
1 |
2 |
24.0 |
129.00 |
38.9 |
|
|
|
SMC/DO-214AB |
28.90 |
31.90 |
1 |
2 |
26.0 |
119.00 |
42.1 |
|
|
|
SMC/DO-214AB |
31.10 |
34.40 |
1 |
2 |
28.0 |
110.00 |
45.4 |
|
|
|
SMC/DO-214AB |
33.30 |
36.80 |
1 |
2 |
30.0 |
103.00 |
48.4 |
|
|
|
SMC/DO-214AB |
36.70 |
40.60 |
1 |
2 |
33.0 |
93.90 |
53.3 |
|
|
|
SMC/DO-214AB |
40.00 |
44.20 |
1 |
2 |
36.0 |
86.06 |
58.1 |
|
|
|
SMC/DO-214AB |
44.40 |
79.10 |
1 |
2 |
40.0 |
77.60 |
64.5 |
|
|
|
SMC/DO-214AB |
47.80 |
52.80 |
1 |
2 |
43.0 |
72.10 |
69.4 |
|
|
|
SMC/DO-214AB |
50.00 |
55.30 |
1 |
2 |
45.0 |
68.78 |
72.7 |
|
|
|
SMC/DO-214AB |
53.30 |
58.90 |
1 |
2 |
48.0 |
64.70 |
77.4 |
|
|
|
SMC/DO-214AB |
56.70 |
62.70 |
1 |
2 |
51.0 |
60.68 |
82.4 |
|
|
|
SMC/DO-214AB |
60.00 |
66.30 |
1 |
2 |
54.0 |
57.50 |
87.1 |
|
|
|
SMC/DO-214AB |
64.40 |
71.20 |
1 |
2 |
58.0 |
53.50 |
93.6 |
|
