產品特性
? 玻璃鈍化芯片
? 在10/1000μ波形重復率（占空比）：0.01%下，峰值脈沖功率可達1500w
? 高可靠性應用，符合汽車級AEC -Q101認證標準
? 低漏電流
? 單、雙向單元
? 優良的鉗位能力
? 快速的響應時間
? 通過無鉛認證，符合ROHS
機械參數
? 方法：模制塑料
? 環氧樹脂：UL 94V-0阻燃劑
? 引線：可焊性按MIL-STD-750，方法2026可焊
? 極性：除雙極性外有色帶的一端為陰極
? 安裝位置：任何

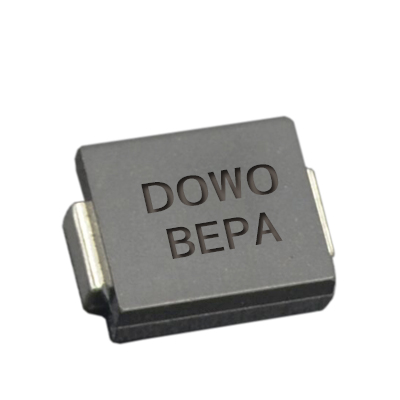

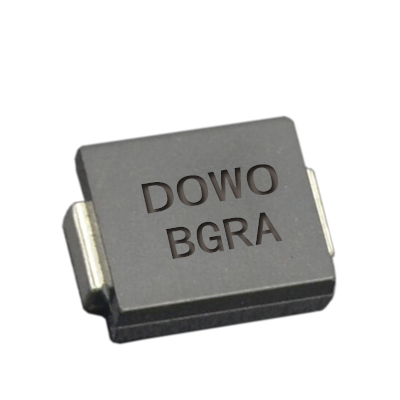

| 型號 | 圖片 | 封裝 | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | 下載 |
|---|---|---|---|---|---|---|---|---|---|---|
|
SMC/DO-214AB |
11.10 |
12.30 |
1 |
5 |
10.0 |
88.24 |
17.0 |
|
|
|
SMC/DO-214AB |
12.20 |
13.50 |
1 |
1 |
11.0 |
82.42 |
18.2 |
|
|
|
SMC/DO-214AB |
13.30 |
14.70 |
1 |
1 |
12.0 |
75.38 |
19.9 |
|
|
|
SMC/DO-214AB |
14.40 |
15.90 |
1 |
1 |
13.0 |
69.77 |
21.5 |
|
|
|
SMC/DO-214AB |
15.60 |
17.20 |
1 |
1 |
14.0 |
64.66 |
23.2 |
|
|
|
SMC/DO-214AB |
16.70 |
18.50 |
1 |
1 |
15.0 |
61.48 |
24.4 |
|
|
|
SMC/DO-214AB |
17.80 |
19.70 |
1 |
1 |
16.0 |
57.69 |
26.0 |
|
|
|
SMC/DO-214AB |
18.90 |
20.90 |
1 |
1 |
17.0 |
54.35 |
27.6 |
|
|
|
SMC/DO-214AB |
20.00 |
22.10 |
1 |
1 |
18.0 |
51.37 |
29.2 |
|
|
|
SMC/DO-214AB |
22.20 |
24.50 |
1 |
1 |
20.0 |
46.30 |
32.4 |
|
|
|
SMC/DO-214AB |
24.40 |
26.90 |
1 |
1 |
22.0 |
42.25 |
35.5 |
|
|
|
SMC/DO-214AB |
31.10 |
34.40 |
1 |
1 |
28.0 |
33.04 |
45.4 |
|
|
|
SMC/DO-214AB |
33.30 |
36.80 |
1 |
1 |
30.0 |
30.99 |
48.4 |
|
|
|
SMC/DO-214AB |
36.70 |
40.60 |
1 |
1 |
33.0 |
28.14 |
53.3 |
|
|
|
SMC/DO-214AB |
40.00 |
44.20 |
1 |
1 |
36.0 |
25.82 |
58.1 |
|
|
|
SMC/DO-214AB |
44.40 |
49.10 |
1 |
1 |
40.0 |
23.26 |
64.5 |
|
|
|
SMC/DO-214AB |
47.80 |
52.80 |
1 |
1 |
43.0 |
21.61 |
69.4 |
|
|
|
SMC/DO-214AB |
50.00 |
55.30 |
1 |
1 |
45.0 |
20.63 |
72.7 |
|
|
|
SMC/DO-214AB |
53.30 |
58.90 |
1 |
1 |
48.0 |
19.38 |
77.4 |
|
|
|
SMC/DO-214AB |
56.70 |
62.70 |
1 |
1 |
51.0 |
18.20 |
82.4 |
|
|
|
SMC/DO-214AB |
60.00 |
66.30 |
1 |
1 |
54.0 |
17.22 |
87.1 |
|
|
|
SMC/DO-214AB |
64.40 |
71.20 |
1 |
1 |
58.0 |
16.03 |
93.6 |
|
|
|
SMC/DO-214AB |
66.70 |
73.70 |
1 |
1 |
60.0 |
15.50 |
96.8 |
|
|
|
SMC/DO-214AB |
71.10 |
78.60 |
1 |
1 |
64.0 |
14.56 |
103.0 |
|
|
|
SMC/DO-214AB |
77.80 |
86.00 |
1 |
1 |
70.0 |
13.27 |
113.0 |
|
|
|
SMC/DO-214AB |
83.30 |
92.10 |
1 |
1 |
75.0 |
12.40 |
121.0 |
|
|
|
SMC/DO-214AB |
86.70 |
95.80 |
1 |
1 |
78.0 |
11.90 |
126.0 |
|
|
|
SMC/DO-214AB |
21.10 |
23.30 |
1 |
1 |
19.0 |
48.73 |
30.8 |
|
|
|
SMC/DO-214AB |
26.70 |
29.50 |
1 |
1 |
24.0 |
38.56 |
38.9 |
|
|
|
SMC/DO-214AB |
28.90 |
31.90 |
1 |
1 |
26.0 |
35.63 |
42.1 |
|
